Cement Production Line Mini Lime 10000TPD Cement Rotary Kiln

Basic Information
Place of Origin: China
Brand Name: AGICO
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Wood Crate
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T
Product Name: Mini Rotary Kiln Cylinder Diameter: Φ3.2-Φ4.8m
Capacity: 300~10000TPD Color: Customizable
Application: Cement Production Line Brand Name: AGICO
Warranty: 12 Months Keyword: Rotary Kiln
High Light:

10000TPD Cement Rotary Kiln

,

Lime Cement Rotary Kiln

,

10000TPD rotary kiln plant

Mini Rotary Kiln Customizable Capacity for Cement Production Line

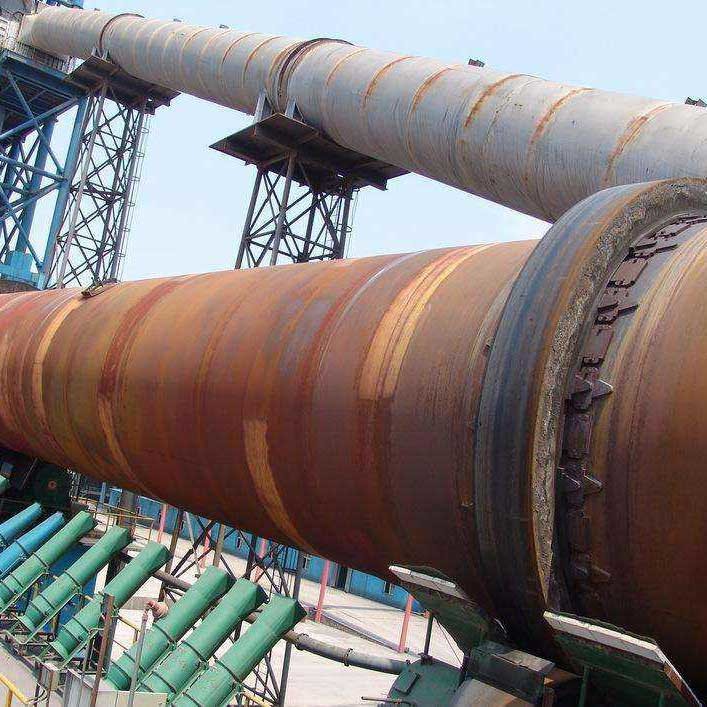

cement rotary kiln


Rotary Kiln refers to rotating calcination kiln, belongs to construction material equipment. According to different materials, rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln. The cement kiln is used for making cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is applied in metallurgy industries and ironworks for lean iron ore, chromium ore and ferronickel ore calcination.



Features



1. History: the company has been manufacturing rotary kilns for more than 20 years, and has accumulated rich experience and technology.

2. Performance: the advanced pre-heating system of the dry-process cement rotary kiln increases the kiln speed and the output per unit volume, make sure the high clinker quality.

3. Cost: the good sealing effect of the system can fully recycle the waste heat. Less area required also save investment.



Working Principle



The rotary kiln from china professional manufacture Hongji Group Machinery is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.



specification




Specification(m) Φ2.8/2.5 * 44 Φ3 * 48 Φ3.2 * 50 Φ3.3 * 50 Φ3.5 * 54 Φ4 * 60
Capacity(ton/day) 300 600-700 1000 1200 1500-1800 2500
Slope of the kiln shell(%) 3.5 3.5 3.5 4 4 4
No. of supports 3 3 3 3 3 3
Type of thrust roller Mechanical Mechanical &Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Rotating Speed of Kiln Main driving(r/min) 0.445-2.22 0.676-3.38 0.36-3.57 0.36-3.57 0.39-3.9 0.41-4.07
Auxiliary driving (r/min) 4.75 9.36 6.5 5.61 7.66 8.2
Main dring Reducer Model ZSN4-225-21 Z2-101 ZSN4-280-091B ZSN4-280-091B ZSN4-315-092 ZSN4-355-092
Rated power(kw) 55 100 160 160 220 315
Speed regulation range (r/min) ~1000 ~1500 1500 1500 1000 1000
Rated voltage (V) 440 220 440 440 440 440
Reducer Model ZS145-1-1 ZS145-1-1 ZSY-450-40-V ZSY450-40 NZS995-28VIBL YNS1110-22.4VBR
Total ratio 49-63 50 40 40 28 22.4
Auxiliary driving Electrical Motor Model Y122M-4 Y160M-6 Y160M-4B Y160M-4 Y200L1-6 Y180L-4
Rated power (kw) 4 7.5 15 11 18.5 22
Speed regulation range(r/min) 1440 970 1460 1460 970 1470
Rated voltage (V) 380 380 380 380 380 380
Reducer Model ZL35-16 ZL35-7-I ZSY160-31.5-II ZSY355-31.5 ZSY355 YNS440-45 II R
Total ratio 40.44 14 31.5 31.5 45 45
(ton)Total weight (excluding refractory brick) 177 207 256.5 281 341 434
(ton)Weight of discharging kiln hood 20 22 25 27 28 35

Specification (m) Φ4.3 * 64 Φ4.8 * 74 Φ5.0 * 74 Φ5.6 * 87 Φ6.0 * 95
Capacity (ton/day) 3500 5000 6000 8000 10000
Slope of the kiln shell (%) 4 4 4 4 4
No. of supports 3 3 3 3 3
Type of thrust roller Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Rotating Speed of Kiln Main driving (r/min) 0.4-4.0 0.35-4 0.35-4 Max 4.23 Max 5
Auxiliary driving (r/min) 7.93 8.52 7.58 8.7 9.2
Main dring Reducer Model ZSN4-355-12 ZSN4-400-092 ZSN4-450-092 ZSN4-450-12 ZNS4-500-092
Rated power (kw) 400 630 710 800 950 * 2
Speed regulation range (r/min) 100~1000 1500 87.5~1000 100~1000 100~1000
Rated voltage (V) 440 660 660 660 660
Reducer Model YNS1400-31.5VIBL JH710C-SW305-40 JH800C-28 JH900C-SW305-25 JS900C-SW305-28
Total ratio 31.5 42.226 26.812 23.901 26.646
Auxiliary driving Electrical Motor Model Y200L-4 Y250M-4 Y250M-4 Y280M-4 Y315M1-4
Rated power (kw) 30 55 55 90 132
Speed regulation range (r/min) 1470 1480 1480 1480 1490
Rated voltage (V) 380 380 380 380 380
Reducer Model YNS497-45ZC JH220C-SW302-28 JS280C-45 ZSY400-35.5-I ZSY450-35.5-I
Total ratio 45 28 45 35.795 35.795
(ton)Total weight (excluding refractory brick) 550.5 854 894 1201 1580
(ton)Weight of discharging kiln hood 36 45 48
